Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer

  • Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
  • Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
  • Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
Luogo di origine Chian
Marca DZK
Certificazione ROHS
Numero di modello JB982-77
Quantità di ordine minimo 100pcs
Prezzo negotiate
Imballaggi particolari 100 pezzi/borsa
Tempi di consegna 7-10 giorni
Termini di pagamento L/c, t/t
Capacità di alimentazione 1000000pcs/mese

Contattatemi per campioni e buoni.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Nome prodotto Sigilli di rondella di tenuta combinata Materiali primari 304 acciaio inossidabile, NBR
Intervallo di temperatura -25 ° C a +100 ° C. Medio Olio
Standard di governo JB982-77 Durezza 70 Durezza a terra
caratteristica Resistente all'olio, resistente all'usura, impermeabile e resistente all'alta temperatur
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
JB982-77 Combined Sealing Washer | All-Metal Self-Sealing Washer for High-Pressure & High-Temperature Applications
Integral Sealing & Fastening | Aerospace & Hydraulic Standard | Reusable Design
Product Overview

The JB982-77 Combined Sealing Washer is a precision-engineered,Composed of a metal gasket and rubber, it uses oil as the medium and is used for sealing threaded pipe joints and plugs. Its operating pressure is 400 kgf/cm² (39.2 MPa) and operating temperature ranges from -25℃ to 80℃. The gasket is a component placed between the connected part and the nut, usually a flat metal ring. It serves to protect the surface of the connected part from scratches by the nut and distribute the pressure of the nut on the connected part.

Technical Specifications (Typical)
Parameter Standard Specification
Governing Standard Jb982-77
Primary Materials 304 stainless steel, NBR
Temperature Range -25°C to +100°C
Hardness 70 Shore Hardness
characteristic Oil-resistant, wear-resistant, waterproof and dustproof, high-temperature resistant
Core Features and Advantages
  • Two-in-One Design: Combines the functions of a flat washer and a sealing washer, simplifying the assembly process.
  • All-Metal Construction: Made of stainless steel, suitable for extreme temperature and pressure environments.
  • Pressure-Activated Sealing: The sealing lip deforms under bolt torque to form an airtight or liquid-tight seal.
  • Reusable: Can usually be reused multiple times if within the deformation limit, reducing lifecycle costs.
  • Wide Compatibility: Resistant to corrosion, radiation, and most highly corrosive chemicals.
Application Fields

It is widely used in hydraulic and pneumatic systems, construction machinery and other fields. It is suitable for working conditions with sealing surface deviation or vibration, ensuring sealing reliability.

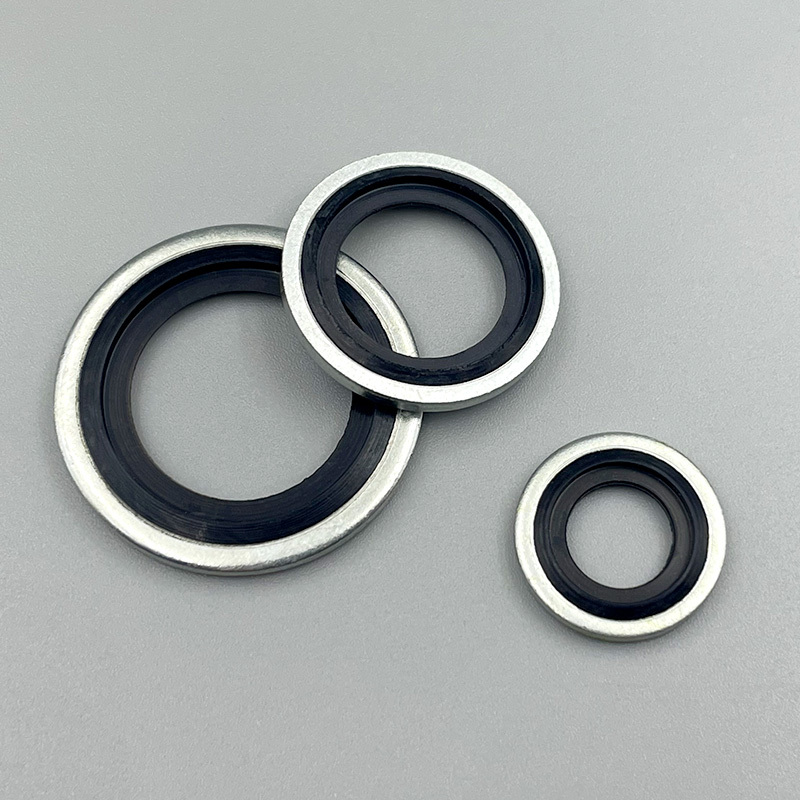

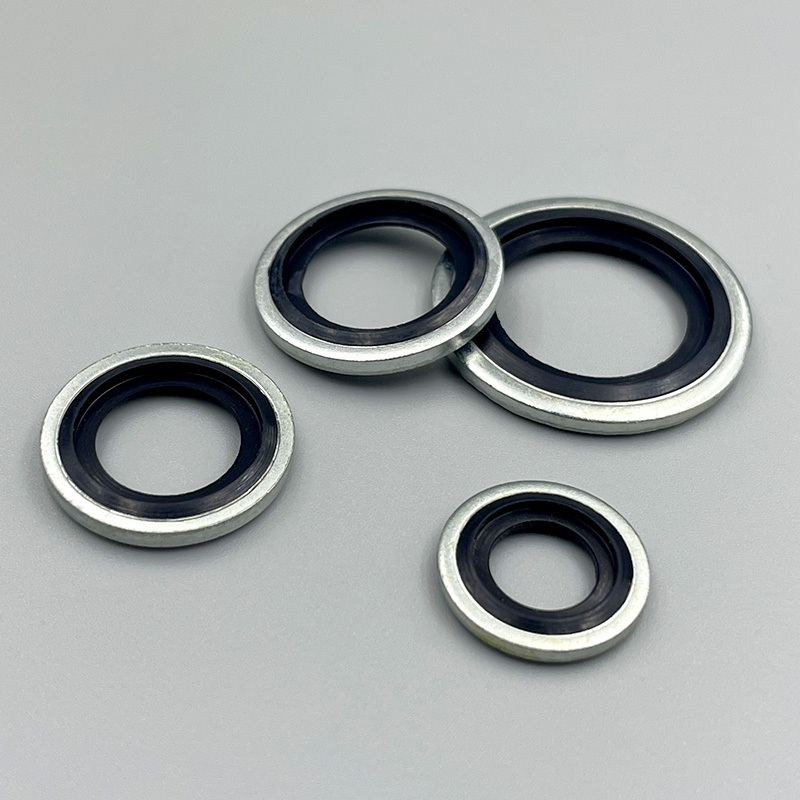

Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer 0 Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer 1 Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer 2 Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer 3
